SAE J517 100 R3-guangyou

EMAIL：sales@gyrubber.cn

PHONE：0086-546-6897102

SKYPE：

Inside		Outside	Working pressure		Burst pressure		Bend radius	Weight	Max
lcnch	mm	mm	bar	psi	bar	psi	mm	gr	m
3/16	4.8	12.7	103	1494	412	5974	80	152	100
1/4	6.4	14.3	86	1247	344	4988	80	180	100
5/16	7.9	17.5	83	1204	332	4814	100	266	100
3/8	9.5	19.1	78	1131	312	4524	100	298	100
1/2	12.7	23.8	69	1000	276	4002	125	428	100
5/8	15.9	27.0	60	870	240	3480	140	499	50
3/4	19	31.8	52	754	208	3016	150	698	50
1	25.4	38.1	39	566	156	2262	205	844	50
1-1/4	31.8	44.5	26	377	104	1508	255	987	50

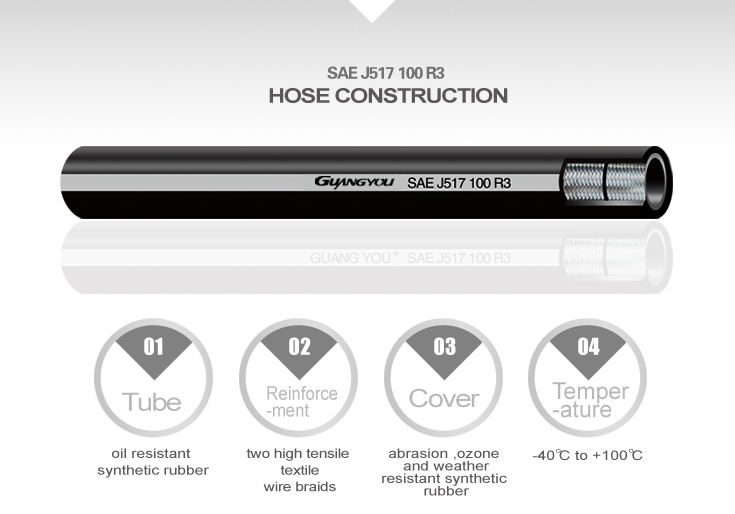

Hydraulic hose: oil resistant synthetic rubber, two high tensile textile wire braid

inquiry
